ABAN Marine Co. is a trusted leader in delivering high-quality offshore flexible pipelines and risers, integrated by expert installation and repair services. With a robust commitment to reliability, safety, and innovation, we specialize in addressing the unique demands of diverse offshore environments. Our cutting-edge solutions are designed to ensure optimized performance, even in the most challenging conditions, empowering our clients to achieve operational excellence with confidence
-
Our Products
Flexible Pipelines and Risers

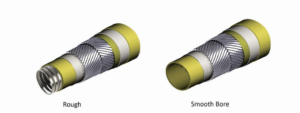

Flexible pipes are complex, multi-layered structures generally made of metallic and polymeric materials. The metallic layers provide mechanical strength, while the polymeric layers seal the bore and protect the pipe from the external environment.
Flexible pipes can be used either as static flowlines to transfer fluids from a wellhead platform to a production platform or as dynamic risers for various offshore applications, including the transportation of multiphase hydrocarbon fluids, water injection, and gas lift operations.
Download Flexible pipe line Catalog ←
Feature:
- ● Size: 2 to 16-inch ID.
- ● Design Pressure: 7500 psi.
- ● Design Temperature: Up to 130°C.
Operational Range:
- ● Suitable for high-corrosive fluids.
- ● Up to 1000 meters water depth
- ● Design life of up to 30 years.
Key Reasons to Use Flexible
- 🔷 Quicker offshore installation operations
- 🔷 Easy crossing, less preparation work
- 🔷 Excellent adaptability to seabed terrains
- 🔷 Optimized route selection due to inherent flexibility, shorter length
- 🔷 Superior corrosion resistance
- 🔷 Continuous manufacturing eliminates field joints
- 🔷 Reusable and environmentally friendly
Cost Benefits

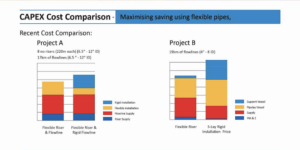

- 🔷 30% Lower CAPEX for infield flowline up to 12″ ID and lengths up to 10 km
- 🔷 Reduced offshore cost for flowline, no metrology & no spool
- 🔷 Easy crossing, less preparation work
- 🔷 Excellent adaptability to seabed terrains

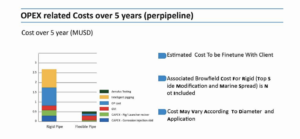

- 🔷 Significant OPEX cost reduction up to 90%
- 🔷 No corrosion inhibitor
- 🔷 No intelligent Pig
Product Specifications
| Feature | Details |
|---|---|
| Design Pressure | Up to 7500 psi |
| Design Temperature | Up to 130°C |
| Maximum Water Depth | 1000 meters |
| Pipe Inside Diameter (ID) | 2 to 16 inches |
| Applications | Oil, Gas, and Water |
The flexible pipe features include a design pressure of up to
7500 psi and a design temperature of up to
130°C.
It can be used at a maximum water depth of
1000 meters, with an internal diameter ranging
from 2 to 16 inches.
This pipe is utilized for transporting
oil, gas, and water.
| Item | Static Application | Dynamic Application |
| Inner Diameter | 2″-16″ | 2″-16″ |
| Pressure Rating | <40MPa (7500 psi) | <40MPa (7500 psi) |
| Temperature Range | -40 C-130 C | -40 C-130 C |
| Water Depth | ≤300m | ≤300m |
| Fluids | Water/Oil/Gas/Chemicals | Water/Oil/Gas/Chemicals |
